Regent 3500 NT Dual Table Bridge saw

• Place of Origin:

   United States

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1455521

• Place of Origin:

  United States

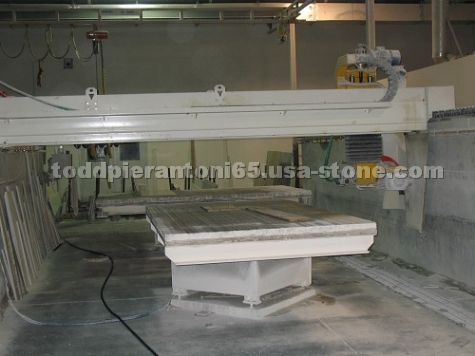

• 2004 Regent 3500 NT Dual Table bridge saw
  Technical Specifications:
  Maximum working thickness with disk diam 625 mm mm 180
  Disk diameter mm 400—750
  optional 900
  Disk inclination from 0 to 90 with disk max mm 600

  Useful cutting lenght with 625 ˉ and 180 mm slabs thickness Asse / axis y

  mm 3300-3600

  Crosswise bridge stroke Asse / axis x
  mm 3500

  Disk raising-lowering stroke Asse / axis z
  mm 400
  Disk motor Kw 11 - 15 - 18 - 22
  Translation cutting motor (with inverter) Asse / axis y
  Kw 1,5
  Crosswise bridge stroke motor (with inverter) Asse / axis x
  Kw 1,1
  Disk raising-lowering stroke motor Asse / axis z
  Kw 1,1
  Translation cutting speed Asse / axis y
  m/min 0—10
  Rotating bench with 5000 Kg maximum load capacity Manuale
  Rotating bench dimensions mm 3300x1800
  Installed electrical power Kw 15 - 26
  Cooling water (min. pressure 1,5 bar) 1/min 50
  Machine lenght mm 6000
  Machine width mm 5000
  Double machine width mm 9400
  Machine height mm 3000
  Approximative weight Kg 4500
  The extremely versatile and easy to use bridge sawing machines type Regent NT 3500 are able to meet all innovative production requirement concerning the automatic processing of marble and granite.
  The specific mechanical and structural characteristics guarantee perfect movements and reduced maintenance.
  Structure
  The bridge runs on two supporting beams positioned on masonry supports.
  The bridge, the trolley and the supporting beams have been machined in highly resistant normalized steel and all the connecting parts have been worked to ensure higher resistance and longer life.
  Machine will be sold as is / where is and implies no warranties.
  Buyer responsible for shipping, rigging and installation.
  Subject to prior sale.
